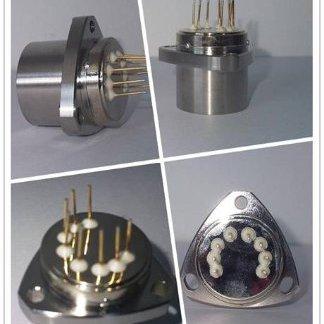

ER-I/C Q-flex Accelerometers

Product Categories

Ericco International Ltd.

Contact Now

Name: ERIC Qflex Accelerometers
Brand: ERICCO
Price: 1 USD

Place of Origin : China

Brand Name : ERICCO

Model Number : ER-I/C

Payment Terms : TT

MOQ : 1

Contact Now

ER-I/C

Application

Can be used in the acceleration measurement system of the

moving objects with space constraints.

No	Parameter	Performance Indicators		Unit
No	Parameter	02	01	Unit
1	Bias	≤4	≤4	mg
2	Scale Factor	1.1~1.5	1.1~1.5	mA/g
3	Second-order Nonlinearity	≤30	≤50	μg/g 2
4	Bias Temp Coefficient	≤40	≤50	Μg/℃
5	Scale Factor Temp Coefficient	≤60	≤80	Ppm/℃
6	Bias month Repeatability	≤40	≤40	μg
7	Scale Factor Repeatability	≤40	≤40	ppm
8	Second-order Nonlinearity Repeatability	≤20	≤20	μg/g 2
9	Natural Frequency	≤800	≤800	Hz
10	Acceleration Range	≥20	≥20	g
11	Vibration	8	8	grms
12	Shock	120g,4.5ms,1/2sin	120g,4.5ms,1/2sin	g, ms
13	Operating Temp	-45~+80	-45~+80	℃
14	Weight	≤80	≤80	g
15	Resolution	≤5×10-6	≤5×10-6	g
16	Operating Voltage	±12~± 15	±12~± 15	v

Features: High precision and small volume

Dimension:
